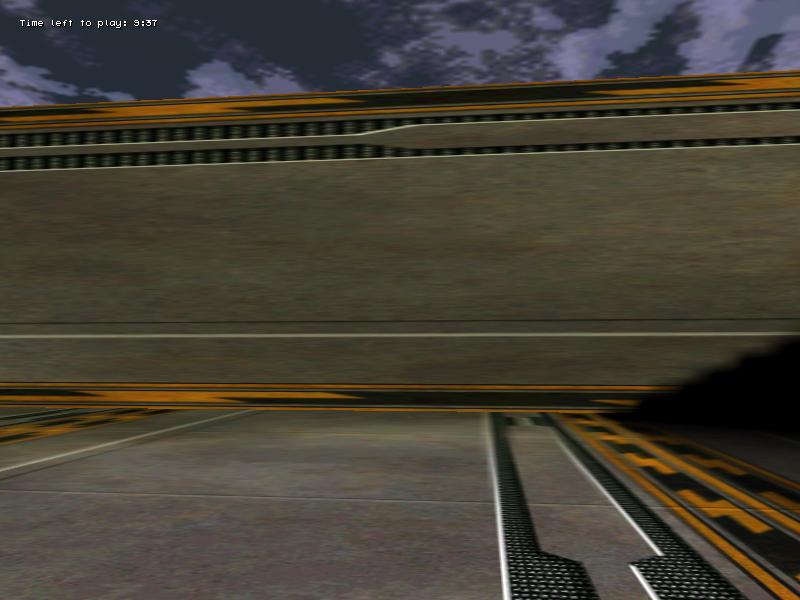

F: Ich hätte gerne einen Countdown-Zähler, der das Game nach 10 Minuten Spielzeit herunterfährt. Kann mir jemand helfen?
A: Hier ist er.
var time_left = 600; // allow the player to run the game for 600 seconds (10 minutes)
var minutes_left = 0;
var seconds_left = 0;
STRING* time_str = "#30";
STRING* temp_str = "#10";
TEXT* time_txt =
{
pos_x = 20;
pos_y = 20;
string(time_str);
flags = SHOW;
}
function countdown_startup()
{
while (time_left >= 0)
{
minutes_left = integer(time_left / 60);
seconds_left = time_left - minutes_left * 60;
str_cpy(time_str, "Time left to play: ");
str_for_num(temp_str, minutes_left);
str_cat(time_str, temp_str);
str_cat(time_str, ":");
str_for_num(temp_str, seconds_left);
if (seconds_left < 10)
str_cat(time_str, "0");
str_cat(time_str, temp_str);
time_left -= 1;
wait (-1);
}
sys_exit(NULL);
}
F: Ich würde die Framerate gerne über einen Slider auf einem Panel anpassen und so die Navigationsgeschwindigkeit in meinem Level erhöhen und verringern.
A: Ich glaube nicht, daß Sie das machen wollen - es wird ihr Spiel ruckelig und bei niedriger Framerate laufen lassen. Nehmen Sie stattdessen time_factor - hier ist ein Beispiel in dem eine Entity über einen Pfad bewegt wird und es ermöglicht Ihnenm, ihre Geschwindigkeit zu steuern.
var entity_speed = 3;
var movement_enabled = 0;
var dist_to_node;
var current_node = 1;
var angle_difference = 0;
VECTOR temp_angle;
VECTOR pos_node[3]; // stores the position of the node
BMAP* slider_tga = "slider.tga";
BMAP* pointer_tga = "pointer.tga";
PANEL* speed_pan =
{
bmap = "speed_panel.tga";
pos_x = 0;
pos_y = 0;
hslider(16, 24, 298, slider_tga, 0, 10, time_factor);
flags = SHOW;
}
function mouse_startup()
{
mouse_mode = 2;
mouse_map = pointer_tga;
while (1)
{
vec_set(mouse_pos, mouse_cursor);
wait(1);
}
}
function move_target()
{
while(1)
{
if(movement_enabled)
{
entity_speed = minv(5, entity_speed + 0.5 * time_step);
c_move(my, vector(entity_speed * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE);
vec_to_angle (my.pan, vec_diff (temp_angle, pos_node, my.x));
}
wait(1);
}
}
action move_on_path() // attach this action to a model
{
move_target();
result = path_scan(me, my.x, my.pan, vector(360, 180, 1000));
if (result) {movement_enabled = 1;}
path_getnode (my, 1, pos_node, NULL);
vec_to_angle (my.pan, vec_diff (temp_angle, pos_node, my.x)); // rotate towards the node
while(1)
{
dist_to_node = vec_dist(my.x, pos_node);
if(dist_to_node < 50) // close to the node?
{
current_node = path_nextnode(my, current_node, 1);
if (!current_node) {current_node = 1;} // reached the end of the path? Then start over!
path_getnode (my, current_node, pos_node, NULL);
}
wait(1);
}
}
F: Besteht irgendeine Möglichkeit, eine Tür ihre Umgebung scannen zu lassen und sie dann horizontal aufgleitet, wenn der Player sich ihr nähert?
A: Sicher, schauen Sie.
var slide_once = 0;
action sliding_door()
{
while (!player) {wait (1);}
while (1)
{
// the door scans on a range of 300 quants, trying to detect the "player" entity
if ((c_scan(my.x, my.pan, vector(360, 180, 300), IGNORE_ME) > 0) && (you == player))
{
slide_once += 1;
if (slide_once == 1) // do this only once
{
// this door slides along the x axis, feel free to use the y and z axis if they serve you better
my.skill90 = my.x;
while (my.x < my.skill90 + 100) // the door slides 100 quants along the x axis
{
my.x += 3 * time_step; // 3 gives the sliding speed
wait (1);
}
}
}
else // the player has moved away from the door here
{
slide_once = 0; // reset slide_once
while (my.x > my.skill90) // let's move the door back to its initial position
{
my.x -= 3 * time_step; // 3 gives the sliding speed
wait (1);
}
my.x = my.skill90; // make sure that the end x position is the same with the initial x position
}
wait (1);
}
}
action players_code() // simple player code snippet
{
var movement_speed = 10; // movement speed
VECTOR temp;
player = my; // I'm the player
while (1)
{
my.pan -= 7 * mouse_force.x * time_step;
camera.x = my.x;
camera.y = my.y;
camera.z = my.z + 50 + 1.1 * sin(my.skill44); // play with 50 and 1.1
camera.pan = my.pan;
camera.tilt += 5 * mouse_force.y * time_step;
vec_set (temp.x, my.x); // trace 10,000 quants below the player
temp.z -= 10000;
temp.z = -c_trace (my.x, temp.x, IGNORE_ME | IGNORE_PASSABLE | USE_BOX) - 2; // play with 2
temp.x = movement_speed * (key_w - key_s) * time_step;
temp.y = movement_speed * (key_a - key_d) * 0.6 * time_step;
c_move (my, temp.x, nullvector, IGNORE_PASSABLE | GLIDE);
wait (1);
}
}

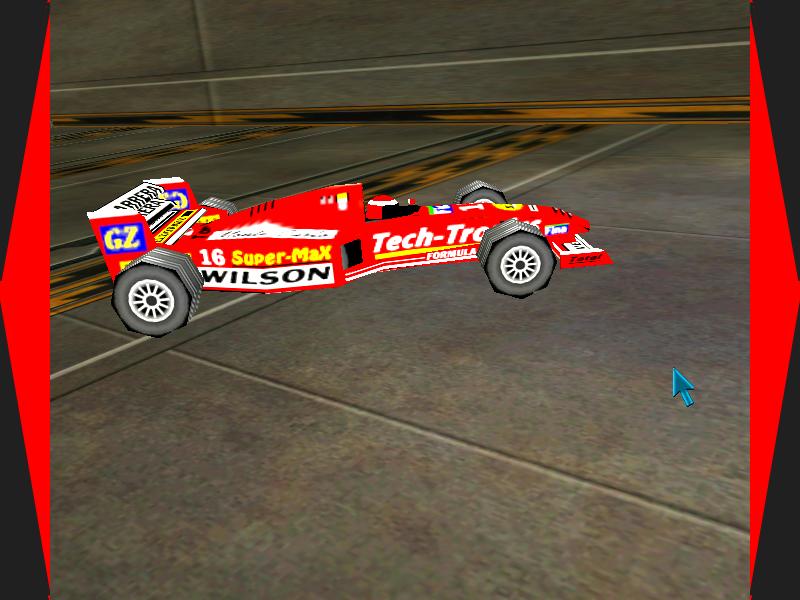

F: Ich habe mit der Arbeit an einem Rennspiel angefangen und hätte gerne einen Autoauswahl-Screen, in dem der Player mit zwei Knöpfen alle verfügbaren Automodell durchgehen kann.
A: Erstellen Sie einen kleinen Raum, setzen Sie Ihr Auto hinein und dann verwenden Sie den Code unten.
var car_type = 1; // showing the first car model at game start
BMAP* arrowleft_pcx = "arrowleft.pcx";
BMAP* arrowright_pcx = "arrowright.pcx";
BMAP* pointer_tga = "pointer.tga";
STRING* tinylevel_wmb = "test.wmb";
ENTITY* car;
function cars_left();
function cars_right();
function set_current_car();
PANEL* leftclick_pan =
{
bmap = "arrowleft.pcx";
pos_x = 0;
pos_y = 0;
layer = 15;
on_click = cars_left;
flags = SHOW;
}
PANEL* rightclick_pan =
{
bmap = "arrowright.pcx";
pos_x = 750;
pos_y = 0;
layer = 15;
on_click = cars_right;
flags = SHOW;
}
void main()
{
fps_max = 70;
video_mode = 7; // run in 800x600 pixels
video_depth = 32; // 32 bit mode
video_screen = 1; // start in full screen mode
level_load (tinylevel_wmb);
while (!car) {wait (1);} // wait until the car model is loaded
// choose a proper camera position that allows you to see the cars perfectly
vec_set (camera.x, vector(1000, 300, 200));
// and maybe set the camera pan, tilt and roll angles as well
vec_set (camera.pan, vector(100, -20, 5));
}
function mouse_startup()
{
mouse_mode = 2;
mouse_map = pointer_tga;
while (1)
{
vec_set(mouse_pos, mouse_cursor);
wait(1);
}
}
function cars_left()
{
car_type -= 1;
car_type = maxv(1, car_type);
set_current_car();
}
function cars_right()
{
car_type += 1;
car_type = minv(3, car_type);
set_current_car();
}
function set_current_car()
{
if(car_type == 1)
ent_morph(car, "car1.mdl");
if(car_type == 2)
ent_morph(car, "car2.mdl");
if(car_type == 3)
ent_morph(car, "car3.mdl");
// add as many cars as you want here
}
// attach this action to the car1.mdl model (the default car)
action my_cars()
{
car = my;
while (1)
{
my.pan += 3 * time_step;
wait (1);
}
}

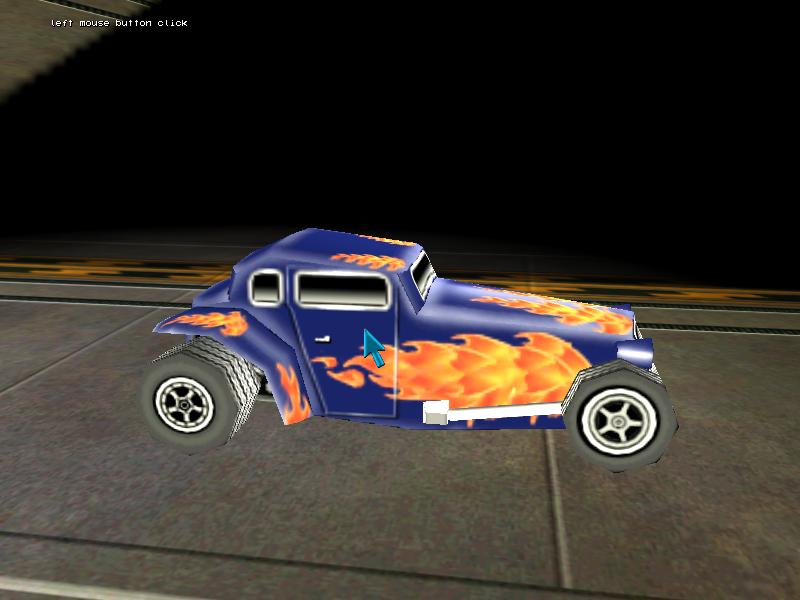

F: Hat irgendjemand die Strings string1 und string2 aus WED heraus benutzt? Ich würde, wenn möglich, gerne ein einfaches Beispiel sehen.
A: Hier ein Beispiel, das den Inhalt von string1 /string2 zeigt wenn eine Entity mit rechter / linker Maustaste angeklickt wurde.
BMAP* pointer_tga = "pointer.tga";
STRING* info_str = "#32";
function mouse_startup()
{
mouse_mode = 2;
mouse_map = pointer_tga;
while (1)
{
vec_set(mouse_pos, mouse_cursor);
wait(1);
}
}
TEXT* info_txt =
{
pos_x = 50;
pos_y = 20;
string (info_str);
flags = SHOW;
}
function strings_startup()
{
while (1)
{
if (mouse_ent)
{
if (mouse_left)
str_cpy(info_str, mouse_ent.string1); // put your text in entity's string1 in Wed
if (mouse_right)
str_cpy(info_str, mouse_ent.string2); // put your text in entity's string1 in Wed
set(info_txt, SHOW);
}
else
{
reset(info_txt, SHOW);
}
wait (1);
}
}

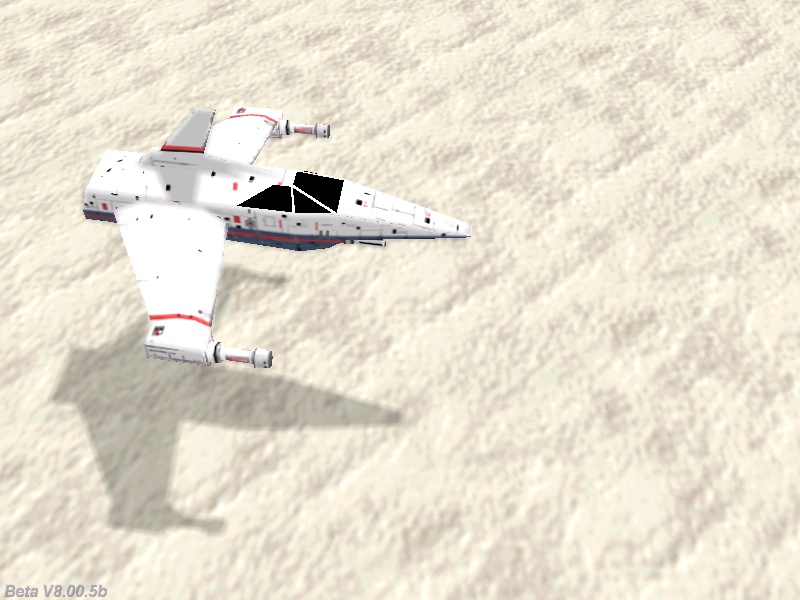

F: Ich suche nach dem einfachsten Weg, Schatten zu werfen wie man es in vielen Spielen unter den Charakteren sehen kann.
A: Hier ist einfaches und voll funktionierendes Beispiel, das es Ihnen erlaubt, mit verschiedenen Typen von Schatten zu spielen.
#include <acknex.h>
#include <default.c>
#include <mtlView.c> // contains the stencil_blur() function
STRING* test_wmb = "test.wmb";
function main()
{
camera.ambient = 70;
fps_max = 70;
video_mode = 7; // run in 800x600 pixels
video_depth = 32; // 32 bit mode
video_screen = 1; // start in full screen mode
level_load (test_wmb);
wait (2);
ent_createlayer("skycube+6.tga", SKY | CUBE | SHOW, 1);
shadow_stencil = 4; // use values in the 0...4 range
shadow_lod = 2; // use the second LOD stage for stencil shadows
stencil_blur(1); // activate blurred shadows (included in mtlView.c, look better)
}
action shadow_model() // simple action that rotates this model in a circle
{
set(my, SHADOW);
while (1)
{
c_move (my, vector(5 * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE);
my.pan += 2 * time_step; // 2 sets the radius of the circle
wait (1);
}
}
F: Ich weiß nicht, ob das schon irgendwo behandelt wurde aber wie kriege ich es hin, daß die Tasten aus dem Zahlenblock (2, 4, 6, 8) die Playerbewegung steuern?
A: Hier ein voll funktionsfähiges Beispiel.
action players_code() // attach this action to your player
{
var movement_speed = 20;
VECTOR temp;
set (my, INVISIBLE);
player = my;
while (1)
{
my.pan -= 7 * mouse_force.x * time_step;
camera.x = my.x;
camera.y = my.y;
camera.z = my.z + 50 + 1.1 * sin(my.skill44);
camera.pan = my.pan;
camera.tilt += 5 * mouse_force.y * time_step;
vec_set (temp.x, my.x);
temp.z -= 10000;
temp.z = -c_trace (my.x, temp.x, IGNORE_ME | IGNORE_PASSABLE | USE_BOX) - 2;
temp.x = movement_speed * (key_pressed(72) - key_pressed(80)) * time_step;
temp.y = movement_speed * (key_pressed(75) - key_pressed(77)) * 0.6 * time_step;
c_move (my, temp.x, nullvector, IGNORE_PASSABLE | GLIDE);
wait (1);
}
}

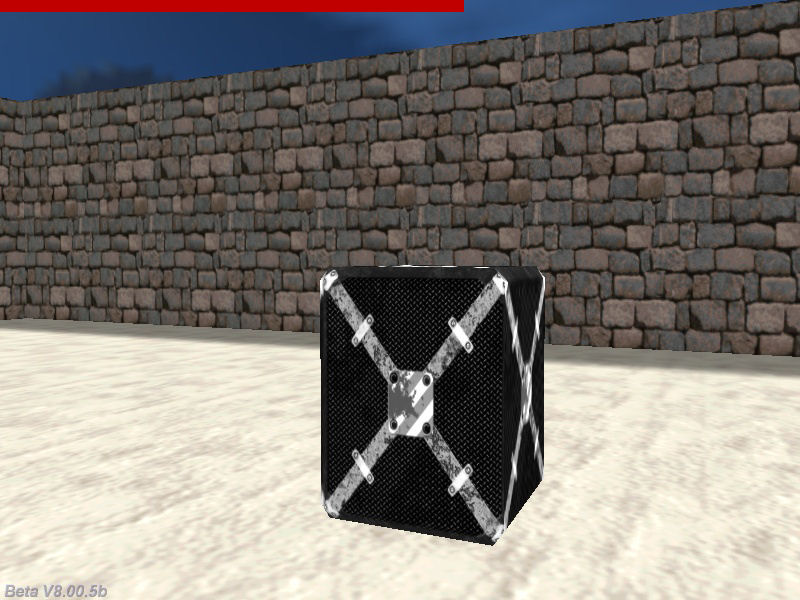

F: Wie kann ich für meinen Player einen Gesundheitsbalken machen?
A: Bitteschön.
var players_health;
PANEL* health_pan =
{
bmap = "redbar.pcx"; // a bitmap with x = 2, y = 12 pixels
pos_x = -10;
pos_y = 0;
layer = 10;
flags = SHOW;
}
function health_startup()
{
while (1)
{
health_pan.scale_x = maxv(0.001, players_health * 3.5); // 3.5 = experimental value
wait (1);
}
}
action players_code() // attach this action to your player
{
var movement_speed = 20;
VECTOR temp;
set (my, INVISIBLE);
player = my;
players_health = 100; // the player starts with 100 health points
while (players_health > 0)
{
my.pan -= 7 * mouse_force.x * time_step;
camera.x = my.x;
camera.y = my.y;
camera.z = my.z + 50 + 1.1 * sin(my.skill44);
camera.pan = my.pan;
camera.tilt += 5 * mouse_force.y * time_step;
vec_set (temp.x, my.x);
temp.z -= 10000;
temp.z = -c_trace (my.x, temp.x, IGNORE_ME | IGNORE_PASSABLE | USE_BOX) - 2;
temp.x = movement_speed * (key_w - key_s) * time_step;
temp.y = movement_speed * (key_a - key_d) * 0.6 * time_step;
c_move (my, temp.x, nullvector, GLIDE);
wait (1);
}
// the player is dead here
camera.z -= 20;
camera.roll = -35;
}
action health_taker()
{
while (!player) {wait (1);}
while (1)
{
if (vec_dist(player.x, my.x) < 200)
players_health -= 2 * time_step;
wait (1);
}
}

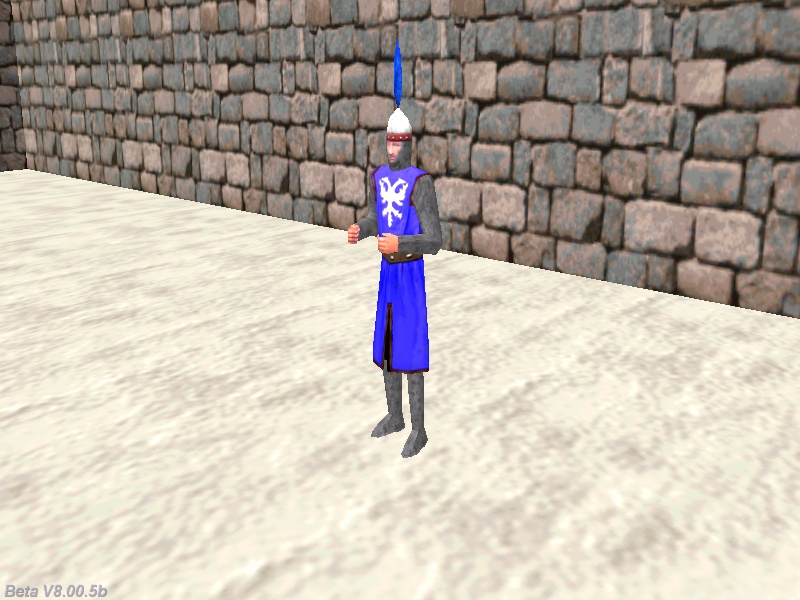

F: Ich hätte gerne eine Kamera, die wann immer ich das will um den Player herumkreist. Die Playerbewegung geschieht über die WSAD-Tasten und die Kamerarotation sollte über die Tasten OP geschehen.
A: Bitteschön.
function camera_startup()
{
var orbit_radius = 200; // use your own value here
var orbit_speed = 4; // and here
var temp_angle;
VECTOR orbit_center, temp;
while (!player) {wait (1);}
vec_set (orbit_center.x, player.x); // store the orbit center position
while(1)
{
camera.x = orbit_center.x + sin(temp_angle) * orbit_radius;
camera.y = orbit_center.y + cos(temp_angle) * orbit_radius;
camera.z = orbit_center.z + 50; // play with 50
camera.tilt = -20; // play with -20
// use the "O" (not zero!) and "P" keys to rotate the camera around the player
temp_angle += 1 * (key_o - key_p) * orbit_speed * time_step; // 1 gives the camera rotation speed
vec_set(temp, player.x);
vec_sub(temp, camera.x);
vec_to_angle(camera.pan, temp); // make the camera look at the player all the time
wait(1);
}
}
action players_code() // attach this action to your player
{
var movement_speed = 20;
VECTOR temp;
player = my;
while (1)
{
my.pan -= 7 * mouse_force.x * time_step;
vec_set (temp.x, my.x);
temp.z -= 10000;
temp.z = -c_trace (my.x, temp.x, IGNORE_ME | IGNORE_PASSABLE | USE_BOX) + 20; // 20 gives the distance to ground
temp.x = movement_speed * (key_w - key_s) * time_step;
temp.y = movement_speed * (key_a - key_d) * 0.6 * time_step;
c_move (my, temp.x, nullvector, IGNORE_PASSABLE | GLIDE);
wait (1);
}
}
F: Gibt es einen Weg, einen Partikel unter einer sich bewegenden Entity zu behalten? Ich habe Feuer, das aus dem Boden meiner Entity kommt. Wenn sich die Entity aber bewegt, bleiben die Partikel da, wo sie generiert wurden und hinterlassen eine Feuerspur.
A: Die einfachste Lösung ist es, Partikel mit einer sehr kurzen Lebensspanne zu erstellen - hier ein voll funktionsfähiges Beispiel.
BMAP* fire_tga = "fire.tga";
function fade_jet(PARTICLE *p)
{
p.alpha -= 40 * time_step; // fade out the fire particles, play with this value
if (p.alpha < 0)
p.lifespan = 0;
}
function jet_effect(PARTICLE *p)
{
p->vel_x = 1 - random(2);
p->vel_y = 1 - random(2);
p->vel_z = 1 + random(1);
p.lifespan = 10; // play with this value
p.alpha = 25 + random(50);
p.bmap = fire_tga;
p.size = 25; // gives the size of the fire particles
p.flags |= (BRIGHT | MOVE);
p.event = fade_jet;
}
action my_player() // dummy player action
{
VECTOR jet_offset;
while (1)
{
// put your own player code here
// the example below simply makes the player rotate in a circle
c_move (my, vector(20 * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE);
my.pan += 2 * time_step; // 2 sets the radius of the circle
// place the particle jet at the proper position, play with the offset values below
vec_set(jet_offset.x, vector(-100, -10, -20));
vec_rotate(jet_offset.x, my.pan);
vec_add(jet_offset.x, my.x);
effect(jet_effect, 1, jet_offset.x, nullvector); // generate a jet particles per frame
wait (1);
}
}
