F: Ist es möglich, im laufenden Level einen Film einzublenden, wenn der Spieler nahe an eine gewisse Entity kommt (dem Ausgang)?
A: Sicher, sehen Sie sich den Code unten an.
// attach this action to a sprite that has the same size with your movie
action movie_gate()
{
// wait until the player entity is loaded in the level
while (!player) {wait (1);}
// wait until the player comes close to the exit gate
while (vec_dist(player.x, my.x) > 150) {wait (1);}
// now play the movie file
media_play("mymovie.avi", bmap_for_entity (my, 0), 100); // use your own movie name here
}
F: Wie kann ich mit lite-C zufällige Passwörter generieren?
A: Hier ist ein Beispiel.
var password_length = 8; // generate passwords that contain 8 characters, play with this number
STRING* password_str = "#30"; // stores passwords with up to 30 characters
STRING* temp_str = " ";
FONT* arial_font = "Arial#20";
TEXT* password_txt =
{
pos_x = 20;
pos_y = 20;
font = arial_font;
string(password_str);
flags = VISIBLE;
}
// press any key to generate a new password
function passwords_startup()
{
var i, temp;
randomize();
while (1)
{
while (key_any) {wait (1);} // wait until all the keys are released
while (!key_any) {wait (1);} // wait until a key is pressed
str_cpy(password_str, "#30"); // reset password_str
i = 0;
while (i < password_length) // generate a number of 8 characters for our password
{
// generate a random ascii code (visible, printable characters only)
temp = integer(random(95)) + 32;
str_for_asc(temp_str, temp); // convert the random number to its string equivalent
str_cat(password_str, temp_str);
i++;
}
}
}

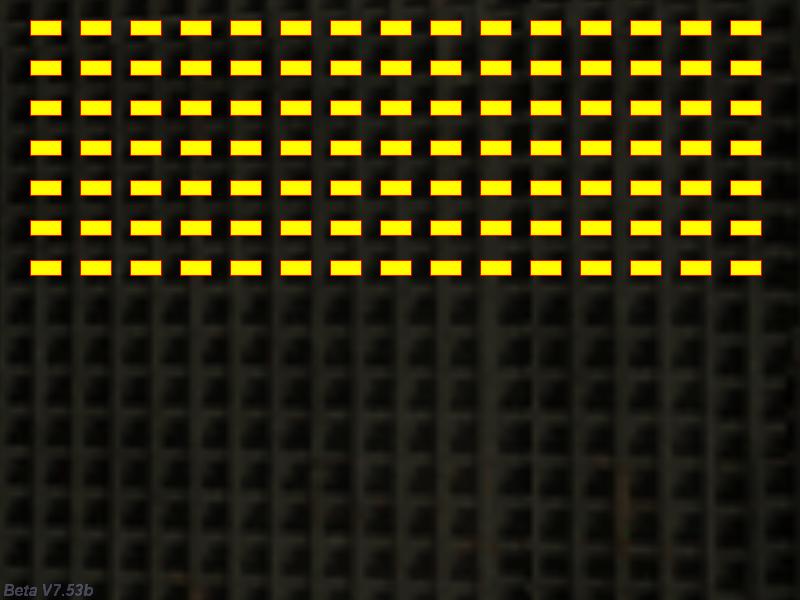

F: Ich möchte einen 2D Arkanoid Klon schreiben, möchte aber nicht über hundert Panels definieren. Gibt es einen einfacheren Weg?
A: Verwenden Sie pan_create, um Ihre Panel einfach zu erstellen und zu plazieren.
PANEL* temp_pan;
// these numerical values work fine for a screen resolution of 800 x 600 pixels
function aliens_startup()
{
var temp1 = 30; // temp1 gives the coordinates of the first brick on the x axis
var temp2 = 20; // temp2 gives the coordinates of the first brick on the y axis
// create rows of bricks until their y exceeds 300
while (temp2 < 300)
{
// generate bricks until their x exceeds 760
while (temp1 < 760)
{
// block.pcx has 32 x 16 pixels in my example, but you can use any other size for the bitmap
temp_pan = pan_create("bmap = block.pcx; flags = overlay, visible;", 10);
temp_pan.pos_x = temp1;
temp_pan.pos_y = temp2;
temp1 += 50;
}
temp1 = 30;
temp2 += 40;
}
}
F: Mein Spieler Model hat 3 Animationen: "walk", "stand" und "look". Ich möchte, dass "walk" gezeigt wird, wenn die Bewegungstasten gedrückt sind, "stand" wenn der Spieler sich nicht bewegt und "look" nach einer längeren Phase der Inaktivität. Wie kann ich das erreichen?
A: Verwenden Sie dieses Spieler / Kamera Beispiel als Grundlage für Ihren Code.
action players_code()
{
VECTOR temp[3];
VECTOR movement_speed[3]; // player's movement speed
var anim_percentage; // animation percentage
var distance_to_ground;
var time_passed = 0;
player = my; // I'm the player
while (1)
{
my.pan += 6 * (key_a - key_d) * time_step; // rotate the player using the "A" and "D" keys
vec_set (temp.x, my.x); // copy player's position to temp
temp.z -= 10000; // set temp.z 10000 quants below player's origin
distance_to_ground = c_trace (my.x, temp.x, IGNORE_ME | USE_BOX);
movement_speed.x = 5 * (key_w - key_s) * time_step; // move the player using "W" and "S"
movement_speed.y = 0; // don't move sideways
movement_speed.z = -(distance_to_ground - 20); // 20 = experimental value
c_move (my, movement_speed.x, nullvector, GLIDE); // move the player
if (!key_w && !key_s) // the player isn't moving?
{
time_passed += time_step / 16; // add "1" to time_passed every second
if (time_passed >= 20) // at least 20 seconds have passed?
{
anim_percentage += 3 * time_step; // 3 = "look" animation speed
ent_animate(my, "look", anim_percentage, ANM_CYCLE); // then play the "look" animation
}
else // the player is standing
{
anim_percentage += 2 * time_step; // 2 = "stand" animation speed
ent_animate(my, "stand", anim_percentage, ANM_CYCLE);
}
}
else // the player is moving?
{
time_passed = 0;
ent_animate(my, "walk", anim_percentage, ANM_CYCLE); // play the "walk" animation
anim_percentage += 5 * time_step; // 5 = "walk" animation speed
}
// camera code
camera.x = player.x - 250 * cos(player.pan);
camera.y = player.y - 250 * sin(player.pan); // use the same value (250) here
camera.z = player.z + 150; // place the camera above the player, play with this value
camera.tilt = -20; // look down at the player
camera.pan = player.pan;
wait (1);
}
}

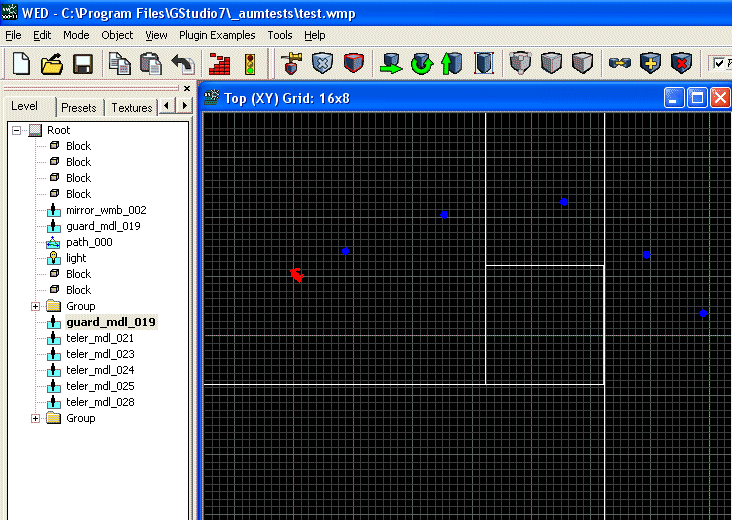

F: Ich möchte, dass mein NPC sich von A nach B bewegt und dabei an gewissen Punkten des Pfades für eine festgelegte Zahl an Sekunden stehenbleibt und wartet. Wie kann ich das erreichen?
A: Plazieren Sie Ihren NPC im Level und geben Sie ihm die Action "patroller". Erstellen Sie einen virtuellen Pfad von A nach B mit kleinen Entities, geben Sie diesen die Action "target_init" und setzen Sie ggf. deren skill1 auf die Wartezeit in Sekunden.
ENTITY* my_target;
action patroller()
{
VECTOR temp[3];
while (1)
{
// scan for camera positions that are placed up to 1000 quants away from this entity
c_scan(my.x, my.pan, vector(360, 60, 1000), IGNORE_ME | SCAN_ENTS | SCAN_LIMIT);
if (you) // a target was detected?
{
my_target = you; // the closest position to the npc is set to "you" by c_scan
my_target.scale_z = 4;
vec_set(temp, my_target.x);
vec_sub(temp, my.x);
vec_to_angle(my.pan, temp); // rotate the patroller towards the position
my.tilt = 0; // but don't allow it to change its tilt angle
// the patroller looks at its target now
while (vec_dist (my.x, my_target.x) > 50) // the patroller moves until it comes close to the target
{
my.skill22 += 5 * time_step; // 5 gives the "walk" animation speed
c_move(my, vector(5 * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE); // 5 = movement speed
ent_animate(my, "walk", my.skill22, ANM_CYCLE);
wait (1);
}
// the patroller has come close to target here
my.skill99 = 0;
while (my.skill99 < my_target.skill1)
{
my.skill99 += time_step / 16;
ent_animate(my, "stand", my.skill22, ANM_CYCLE);
my.skill22 += 3 * time_step; // 3 gives the "stand" animation speed
wait (1);
}
ent_remove(my_target); // remove the current target and prepare for the following target
}
else // reached the end of the path?
{
ent_animate(my, "stand", my.skill22, ANM_CYCLE); // then default to standing
my.skill22 += 3 * time_step; // 3 gives the "stand" animation speed
}
wait (1);
}
}
action target_init()
{
set (my, PASSABLE | INVISIBLE); // player's movement code should ignore passable entities
my.emask |= ENABLE_SCAN; // the target entity is sensitive to c_scan instructions
}

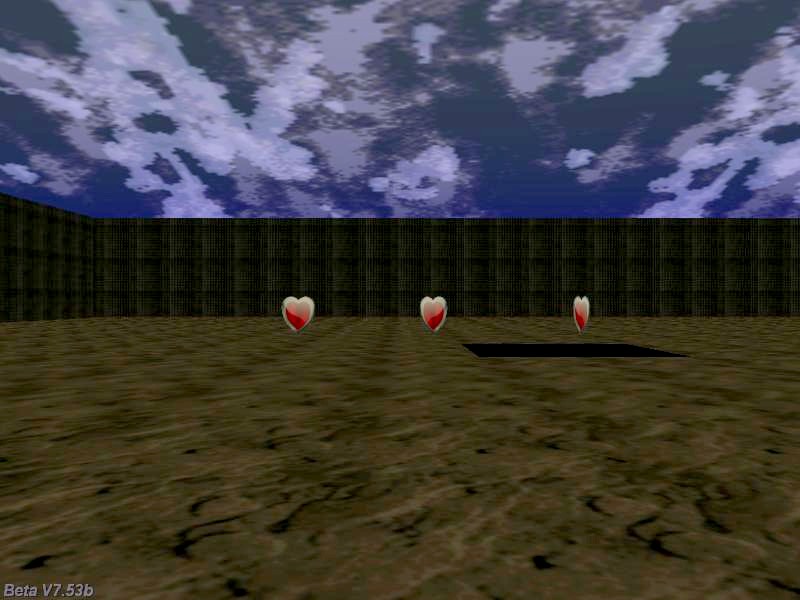

F: Ich brauche einige Ziele (Sprites), die sich um ihre vertikale Achse drehen, wenn auf die geschossen wird. Können Sie helfen?
A: Sicher, hier ist entsprechender Code.
SOUND* bullet_wav = "bullet.wav";
function fire_bullets()
{
VECTOR trace_coords[3];
vec_set(trace_coords.x, vector(5000, 0, 0)); // trace 5000 quants in front of the player
// rotate "trace_coords"
vec_rotate(trace_coords.x, camera.pan);
vec_add(trace_coords.x, player.x); // add the resulting vector to player's position
snd_play(bullet_wav, 70, 0); // play the bullet sound
if (c_trace (player.x, trace_coords.x, IGNORE_ME + USE_BOX) > 0) // the "c_trace" ray has hit something?
{
if (you) // and the hit object is an entity?
{
if (you.skill1 == 99) // and the hit entity has its skill1 set to 99?
{
you.skill50 = 30; // 30 = maximum rotation speed
}
}
}
}
action players_code()
{
on_mouse_left = fire_bullets;
player = my; // I'm the player
set (my, INVISIBLE); // no need to see player's model in 1st person mode
while (1)
{
// move the player using the "W", "S", "A" and "D" keys; "10" = movement speed, "6" = strafing speed
c_move (my, vector(10 * (key_w - key_s) * time_step, 6 * (key_a - key_d) * time_step, 0), nullvector, GLIDE);
vec_set (camera.x, player.x); // use player's x and y for the camera as well
camera.z += 30; // place the camera 30 quants above the player on the z axis (approximate eye level)
camera.pan -= 5 * mouse_force.x * time_step; // rotate the camera around by moving the mouse
camera.tilt += 3 * mouse_force.y * time_step; // on its x and y axis
player.pan = camera.pan; // the camera and the player have the same pan angle
wait (1);
}
}
action shooting_target()
{
my.skill1 = 99; // this entity will rotate around its axis
while (1)
{
while (my.skill50 <= 0) {wait (1);} // the entity waits until it is shot by the player
while (my.skill50 > 0)
{
my.pan += my.skill50 * time_step; // rotate the entity around its pan angle
my.skill50 -= 0.5 * time_step; // decrease the rotation speed as the time passes
wait (1);
}
}
}

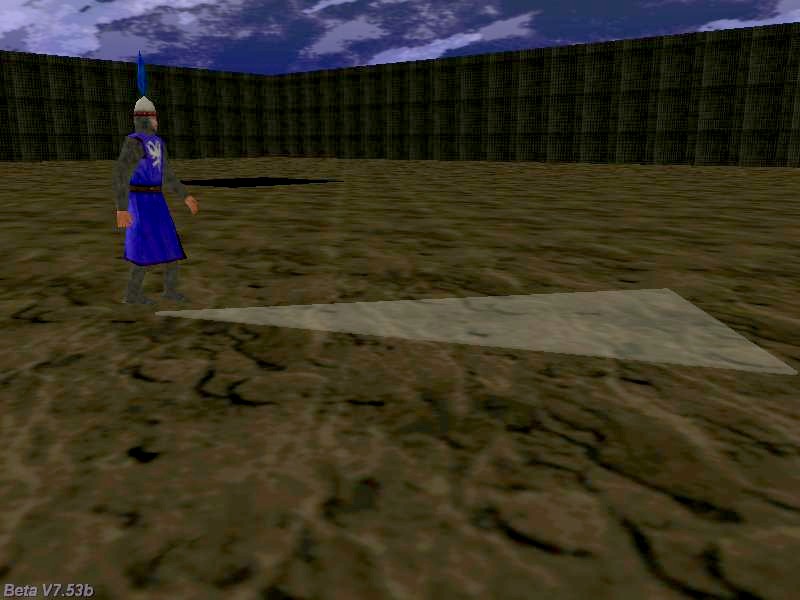

F: Wie kann ich die c_scan Reichweite meiner Entity sehen? Ich möchte sie gern auf dem Bildschirm anzeigen.
A: Speichern Sie triangle.mdl aus dem "Ressourcen" Ordner und verwenden Sie dieses Model mit dem Code unten. Dadurch wird der horizontale Scan Sektor und die Distanz angezeigt.
function scan_view()
{
proc_kill(4); // follow the entity smoothly
set(my, PASSABLE | TRANSLUCENT);
my.alpha = 20;
while (you)
{
my.x = you.x;
my.y = you.y;
my.z = you.z - 35; // move the triangle at the floor level
my.pan = you.pan;
my.tilt = you.tilt;
my.scale_x = you.skill3 / 10; // set the proper scale_x and scale_y for the triangle model
my.scale_y = 2 * you.skill3 * tan(you.skill1 / 2) / 10; // scale_y = 2 * d * tg (alpha / 2)
wait (1);
}
}
action my_entity() // simple entity code, makes it rotate around while scanning the area
{
my.skill1 = 30; // horizontal angle
my.skill2 = 20; // vertical angle
my.skill3 = 200; // scanning range
VECTOR temp[3];
// create the triangular area using a triangle that has a size of 10 pixels
ent_create("triangle.mdl", nullvector, scan_view);
while (1)
{
c_scan(my.x, my.pan, my.skill1, IGNORE_ME | SCAN_ENTS | SCAN_LIMIT);
c_move(my, vector(5 * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE); // 5 = movement speed
my.skill22 += 5 * time_step; // 5 gives the "walk" animation speed
my.pan += 1 * time_step;
ent_animate(my, "walk", my.skill22, ANM_CYCLE);
wait (1);
}
}

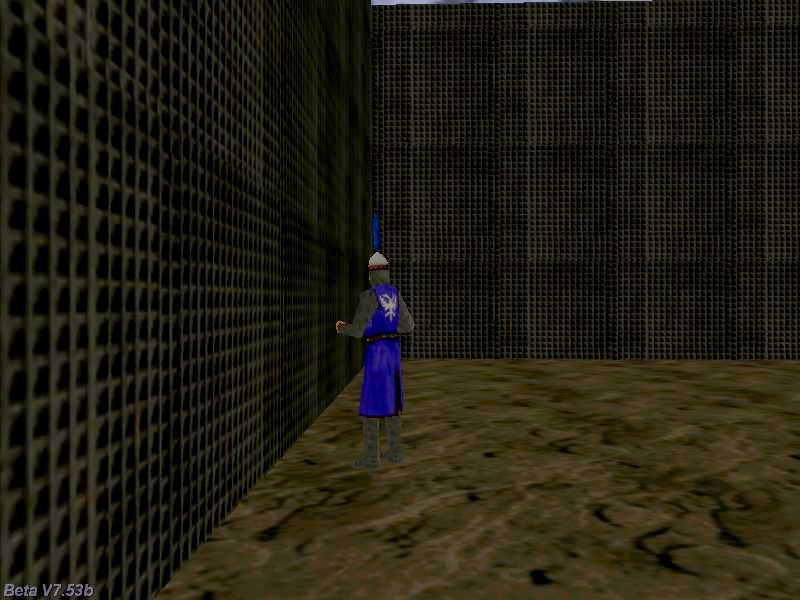

F: Ich spiele Guild Wars und habe bemerkt, dass es dort intelligente NPCs gibt, die umher laufen, vor Wänden anhalten und dann die Richtung ändern und fortgehen. Kann etwas Ähnliches auch mit Gamestudio erreicht werden?
A: Sehen Sie sich den Code unten an, er tut exakt das, was Sie brauchen.
action intelligent_npc() // stops in front of the wall, and then changes its direction
{
VECTOR front_pos;
var distance_covered;
while (1)
{
vec_set(front_pos.x, vector(50, 0, 0)); // compute a vector that's 50 quants in front of the player
// rotate "front_pos" in the direction (angles) given by the entity
vec_rotate(front_pos.x, my.pan);
vec_add(front_pos.x, my.x); // add the resulting vector to entity's position
if (c_content(front_pos.x, 0) == 1) // front_pos isn't touching any walls?
{
// 5 gives the movement speed
distance_covered = c_move(my, vector(5 * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE);
my.skill22 += 5 * time_step; // 5 gives the "walk" animation speed
ent_animate(my, "walk", my.skill22, ANM_CYCLE);
}
else // the player is close to a wall now?
{
my.skill99 = 0;
while (my.skill99 < 5) // stays in front of the wall for 5 seconds
{
my.skill99 += time_step / 16;
ent_animate(my, "stand", my.skill22, ANM_CYCLE);
my.skill22 += 3 * time_step; // 3 gives the "stand" animation speed
wait (1);
}
my.skill99 = my.pan;
my.skill99 += random(180);
while (my.pan < my.skill99)
{
my.pan += 5 * time_step;
wait (1);
}
}
wait (1);
}
}

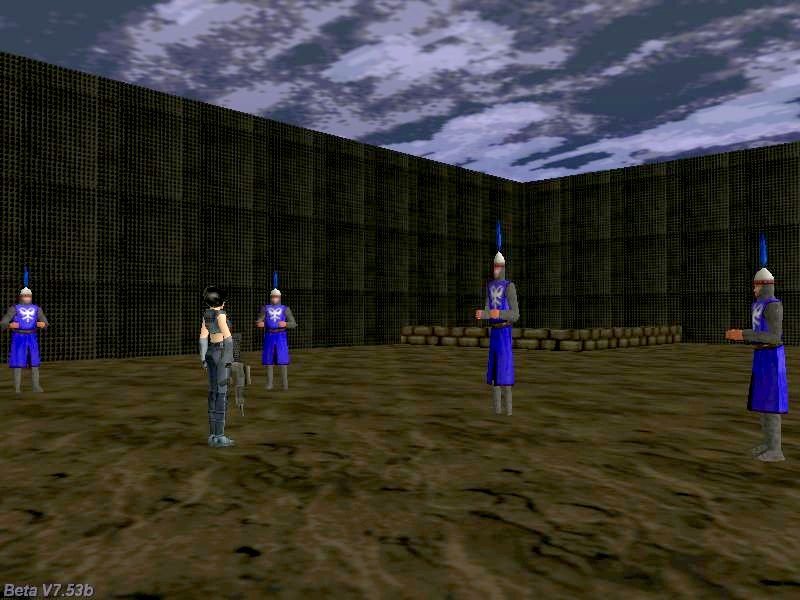

F: Mein Spieler ist von Feinden umzingelt, aber ich kann nciht gut ermitteln, welchen dieser Feinde der Spieler ansieht. Können Sie bitte helfen?
A: Der folgende Code berechnet die Winkeldifferenz zwischen dem Spieler und jedem Gegner. Wenn diese zwischen 150 und 210 liegt (180 plus/minus 30 Grad), dann steht der Feind vor dem Spieler. Der Code setzt scale_z für diesen Gegner auf 1,5.
action player_code() // attach this action to your player
{
var movement_speed = 10; // movement speed
VECTOR temp;
player = my; // I'm the player
while (1)
{
temp.x = movement_speed * (key_cuu - key_cud) * time_step;
temp.y = 0;
temp.z = 0;
my.pan += 4 * (key_cul - key_cur) * time_step;
c_move (my, temp.x, nullvector, IGNORE_PASSABLE | GLIDE);
wait (1);
}
}
// simple enemy action; surround the player with several models that have this action attached to them
action my_enemy()
{
VECTOR temp;
while (!player) {wait (1);}
while (1)
{
vec_set(temp, player.x);
vec_sub(temp, my.x);
vec_to_angle(my.pan, temp); // rotate the enemy towards the player
my.tilt = 0; // but don't allow it to change its tilt angle
if (ang(my.pan - player.pan) > 150)
{
// the angle between the enemy and the player is in the 150...210 degrees range?
if (ang(my.pan - player.pan) < 210)
{
// then increase the z scale of the entity that is facing the player
my.scale_z = 1.5;
}
}
else // the player isn't facing this enemy
{
my.scale_z = 1; // so restore the initial scale_z value
}
wait (1);
}
}

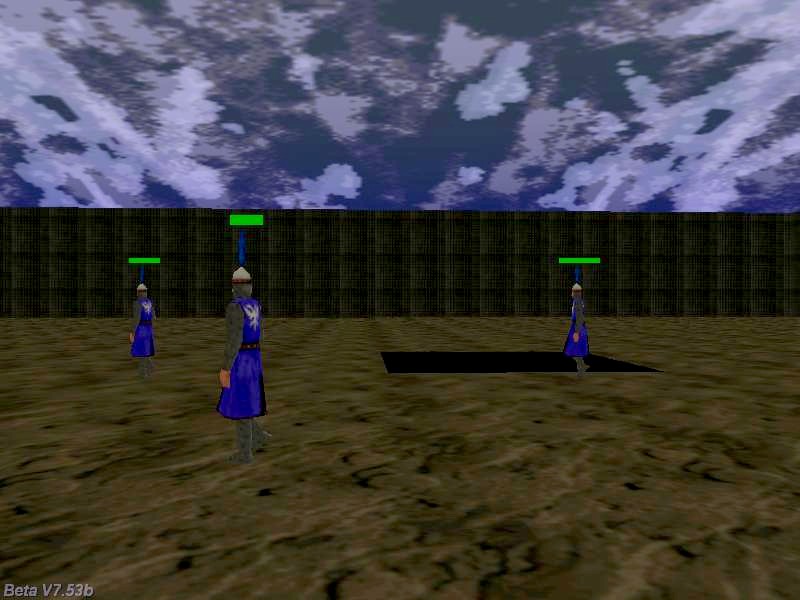

F: Geben Sie bitte ein Beispiel, wie man lokale Variablen als Panels über einer Entity anzeigt; darüber herrscht im Forum große Verwirrung. Als Beispiel haben Sie einige Entities mit der gleichen Action und Sie wollen ein Health Panel anzeigen.
A: Der Code unten nutzt ein grünes 4 x 4 Pixel großes Sprite für ein Health Panel über jeder Entity. Der Wert für die Gesundheit wird aus einer lokalen Variablen (skill20 der Entity) gelesen.
#define health skill20
function health_indicator()
{
set (my, PASSABLE);
while (you)
{
vec_set (my.x, you.x);
my.z += 60;
my.scale_x = you.health * 0.1; // skill20 aka "health" stores the health for each entity
wait (1);
}
}
action my_enemy() // simple enemy action, makes it rotate in a circle
{
my.health = 10 + random(90);
ent_create ("health.pcx", nullvector, health_indicator);
while (1)
{
c_move(my, vector(5 * time_step, 0, 0), nullvector, IGNORE_PASSABLE | GLIDE); // 5 = movement speed
my.skill22 += 5 * time_step; // 5 gives the "walk" animation speed
my.pan += 1 * time_step;
ent_animate(my, "walk", my.skill22, ANM_CYCLE);
wait (1);
}
}
function randomize_startup()
{
randomize();
}
